Durable and Efficient

The new line of Anderson Oil Expeller presses are designed to continue Anderson’s long-standing tradition of providing the industry with the most durable and efficient mechanical screw presses on the market.

Along with maintenance- and operator-friendly packages, the systems can press over 100 metric tons per day (MTPD) in a single machine with residuals as low as 5% when paired with Anderson’s extrusion technology. With minimal modifications the Anderson Oil Expeller presses can change from one oilseed application to another, allowing for adaptation to market shifts and fluctuation. In addition, the machinery limits the downtime required for maintenance, increasing the profitability of the press.



Anderson Expeller Video

View the Anderson Oil Expeller in action by visiting our video on Engormix.


Features

  • Integral press maintenance hoist
  • Feed and discharge shaft support for maximum wear life of wetted parts
  • Hydraulically adjustable choke for better control
  • Fully-reversible gearbox for clearing plug without machine disassembly
  • Proprietary dual cast, hard-faced worm design

Popular Applications

  • Soybean
  • Canola/Rapeseed
  • Sunflower
  • Peanuts/Ground Nuts
  • Copra
  • Palm Kernel

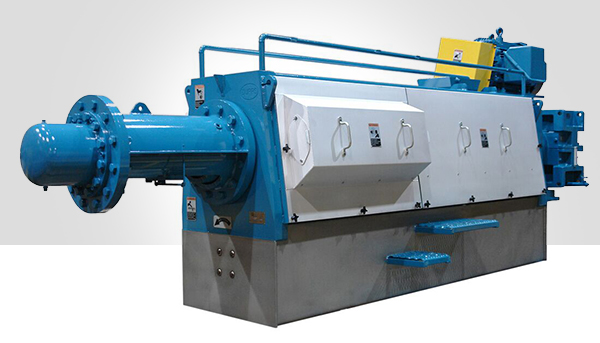

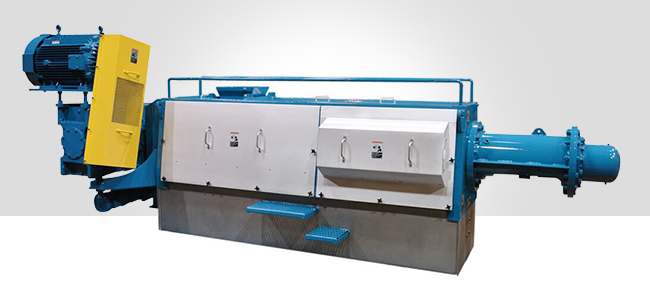

Shown: Anderson 12″ Expeller

MODEL SPECIFICATIONS
ModelMax Con. PowerLengthWidthHeightEstimated Weight

12/12-6
300 HP
(224 kW)
241” (6,121 mm)
36” (914 mm)
110” (2,794 mm)26,500 lbs (12,018 kg)
10/10-6200 HP (150 kW)210” (5,334 mm)
36” (914 mm)
108” (2,743 mm)24,500 lbs (11,111 kg)
7/7-4.5100 HP (75 kW)139” (3,505 mm)48” (1,219 mm) 70” (1,778 mm)10,400 lbs (4,717 kg)
PERFORMANCE RATING
ModelConnected HPCapacity (MTPD)Residual Oil
12/12-6250-300100-1205-7%
10/10-6150-20060-805-7%
7/7-4.575-10035-455-7%
